Setting gate posts in expansive Austin clay

The post does one job: it holds a fixed pivot line for the hinges while the ground around it changes volume. East of the Balcones Fault, in places like Mueller and Bouldin Creek, that ground is black expansive clay, and for gate installation in Austin, TX the notes at gate installation austin three word wednesday start there. Clay swells with water and shrinks as it dries, and a gate post is a rigid thing pushed around by both.

What shrink and swell does to a footing

In a long dry summer the clay pulls away from the concrete and opens cracks a finger wide. The first heavy rain pours straight down those cracks to the bottom of the footing, and the wet clay swells and pushes sideways and upward. A footing with a smooth, straight side can be lifted a little each year. Over several seasons a post leans, and the leaning shows up first as a gate corner that rubs the ground or a latch that misses.

Bell shaped or straight

A straight cylinder of concrete grips the clay along its sides and gets dragged up when the soil expands. A footing that is wider at the bottom than at the top, a bell, resists that lift because the wide base sits below the layer that moves the most. Crews near Lady Bird Lake and the low ground by the Colorado River often shape the hole by hand to a slight bell, and a sleeve of heavy paper or plastic around the upper section lets the clay slide past the concrete.

Hole size and depth

A wider hole holds more concrete and moves less. For a steel post carrying a swing gate, the hole is dug several times the post width, and deep enough to sit below the zone where the clay dries and cracks. A tubing post for a light single swing aluminum gate takes a smaller footing than a frame post for a heavy dual swing pair. The load decides it, and the arc of the leaf pulls hardest at the top of the post.

Gravel, drainage and the crown

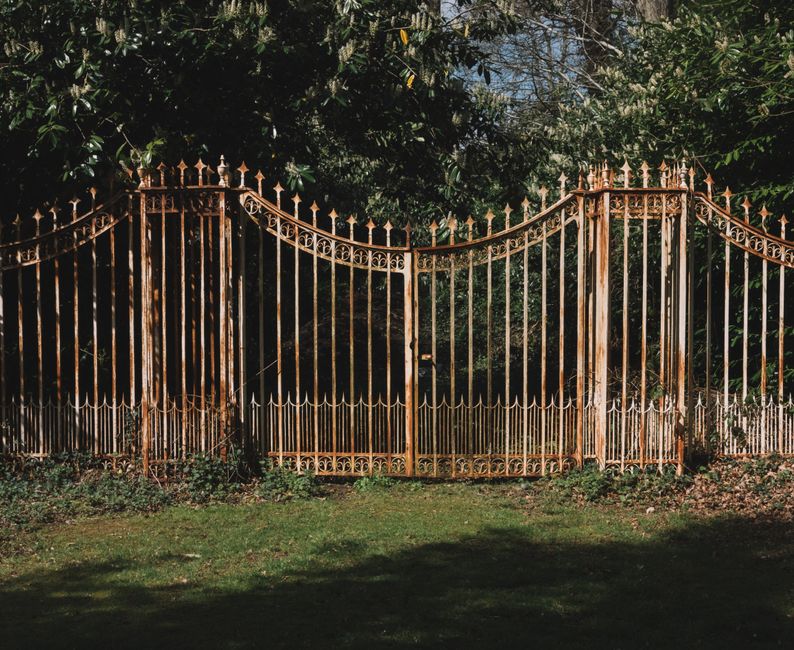

A few inches of compacted gravel at the base lets water drain out from under the footing instead of pooling there. The concrete is poured to just above grade and finished with a crown that slopes away from the post, so rain runs off instead of seeping between steel and concrete. The steel itself gets a coat of paint or a powder coat touch up at the ground line, because that is where galvanized tubing starts to rust first.

What a settled post looks like

A post that was set well barely moves. Even so, a crew in Austin expects a little seasonal shift and hangs the gate on hinges that can be adjusted, so a half inch of movement is corrected with a wrench rather than a new footing.
